LaboQuip Inverted Microscope Trinocular, Model SHBDS-400, for Professional & Research Microscopy

£2,149.99

VAT and shipping calculated at checkout

Returns & Warranty

Easy Returns: Not completely satisfied with your purchase? No problem! You have 14 days to return your product. For more details see our Refund Policy.

1-Year Warranty: We stand behind the quality of our products. All items come with a 1-year warranty covering manufacturing defects. For more information on our warranties, please see our Warranty Policy

Delivery and Shipping

Dispatch & Delivery: We aim to dispatch all orders on the same or next working day. Any orders placed before 12pm cut off time will be dispatched same day.

Standard Shipping: For our standard shipping service, we use a 2 working day courier.

  • Up to £60: £5.49 (excluding VAT)
  • Above £60: Free (excluding VAT)

Express Shipping: If you need an item faster, opt for our express shipping option. We will send your item out with a 1 working day courier such as DHL, Royal Mail, DPD, etc.

  • Up to £60: £6.99 (excluding VAT)
  • Above £60: £2.99 (excluding VAT).

For more information, please see our Shipping Policy.

Please note: Additional delivery charge subject on certain postcodes and items such as burettes

Request a Quote

If you have wholesale or custom requirements, please fill in this form (Link) and we will get back to you with a tailored quotation.

Alternatively, you can add the required items to your basket and select the “Bank Deposit” payment option at checkout. No immediate payment is required. We will send you a quotation, and you can proceed with payment upon acceptance.

Description

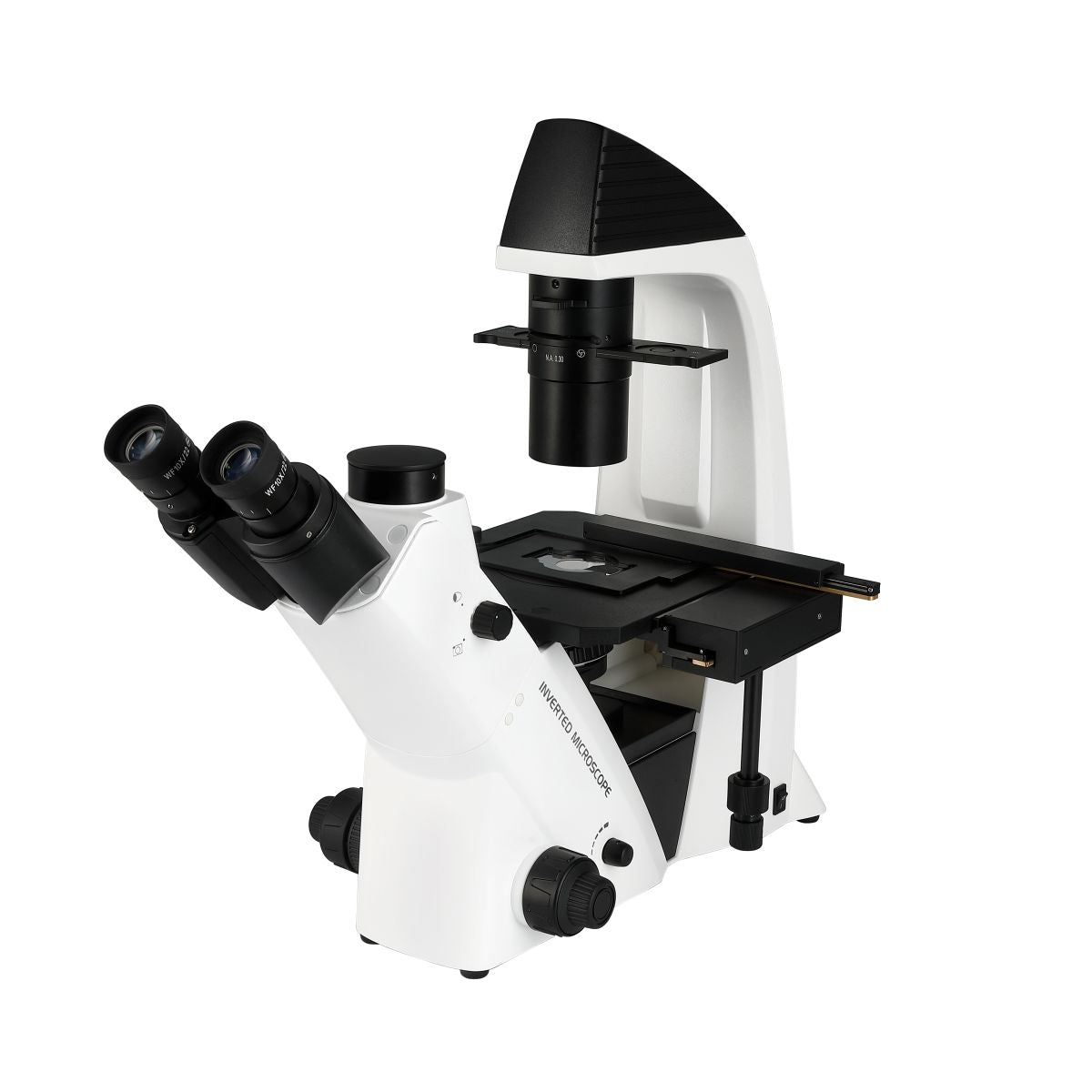

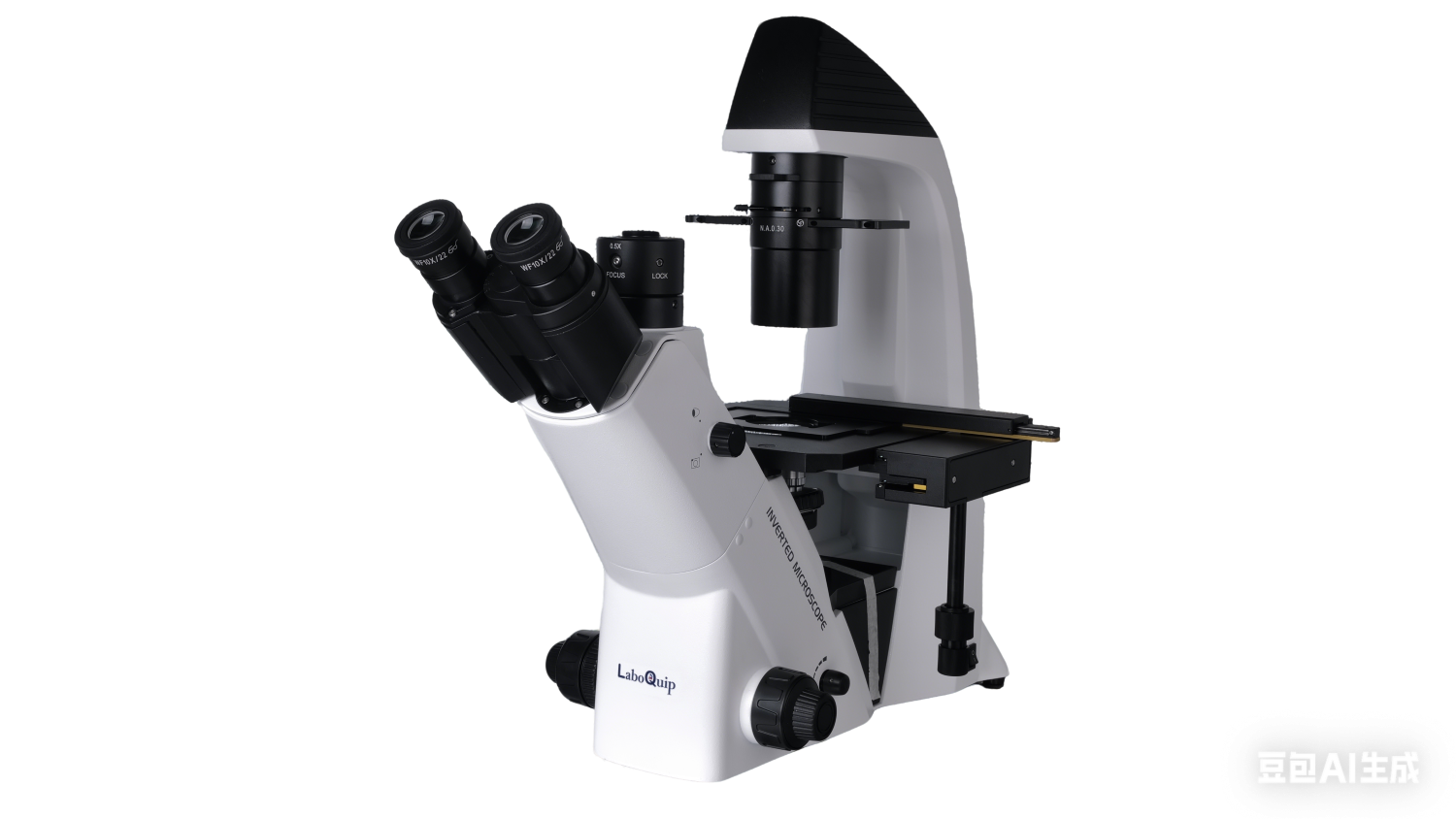

About LaboQuip Microscope Inverted Trinocular SHBDS-400

The LaboQuip SHBDS-400 inverted trinocular microscope is designed for professional and research laboratories, combining ergonomic design, large working area, and high optical performance. Featuring a 45° inclined body for user comfort, a long working distance condenser (72 mm, N.A. 0.30), and a trinocular head for digital camera attachment, it supports advanced biological, educational, and research applications. The extra-large double-layer stage (240 mm × 210 mm) and expanded moving range provide flexibility for large samples and multi-well plates. With WF 10/22 mm eyepieces, 10×, 20×, 40× Infinity LWD Plan achromatic objectives, optional LWD Plan Phase Contrast, and LED or halogen illumination, the SHBDS-400 is suitable for high-resolution imaging and phase contrast work.

Key Features:
• 45° body incline for superior comfort
• Long working distance condenser: 72 mm, N.A. 0.30 (195 mm working distance without condenser)
• Trinocular head for digital camera attachment

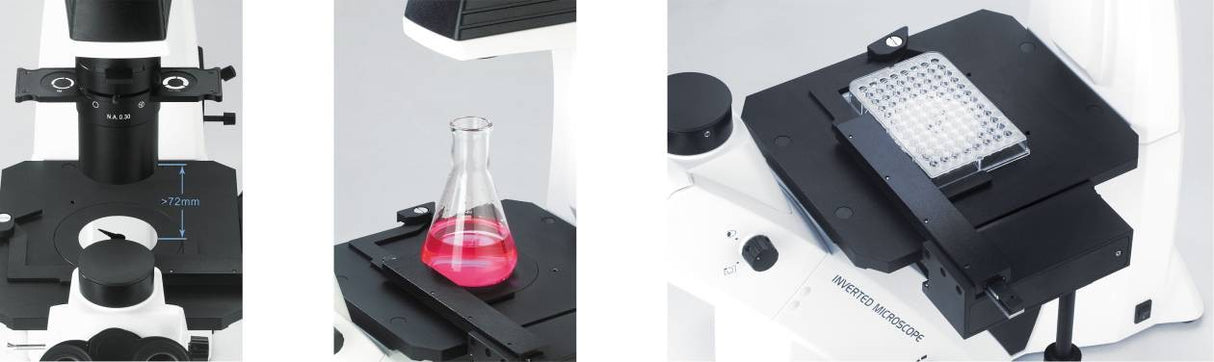

• Extra-large double-layer stage: 240 mm × 210 mm
• Expanded long-distance moving range
• Right-handed lowered stage controller
• Mechanical stage available for 96-well plates: Moving range 128 mm × 80 mm
• WF 10/22 mm eyepiece
• 10×, 20×, 40× Infinity LWD Plan achromatic objectives
• Additional LWD Plan Phase Contrast 20× objective
• LED (5 W) or Halogen lamp (12 V / 30 W) illumination
• Blue and green filters

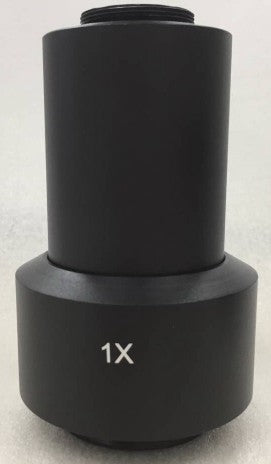

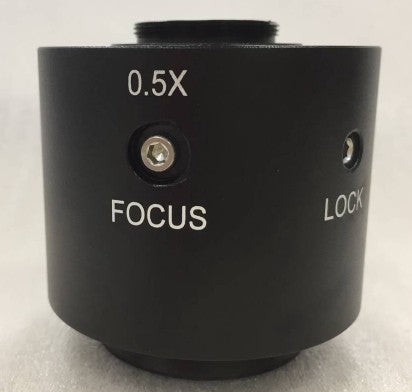

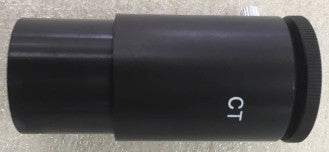

• Optional accessories: C-Mount 0.5× (£50) / 1× (£40), Center Telescope (£50)

Applications:
• Professional and research biological laboratories
• Educational demonstrations and advanced microscopy
• High-resolution specimen observation
• Phase contrast and long working distance applications

Product Variant Details:
• Product type: Inverted trinocular microscope
• Model: SHBDS-400
• Eyepiece: WF 10/22 mm
• Objectives: 10×, 20×, 40× Infinity LWD Plan; optional 20× LWD Plan Phase Contrast
• Stage: Extra-large double-layer, mechanical stage optional
• Illumination: LED 5 W or Halogen 12 V/30 W
• Filters: Blue and green
• Camera attachment: Trinocular head, optional C-Mount
• Incline: 45° body

Additional Information:
• Fluorescence accessories and camera not included; can be supplied on request
• Delivery: 15–20 days; please request a quote
• 14-day money-back guarantee for any inconformity or malfunction (No Change of mind will be accepted for this product, as we customize it due to customer need.)

• See Specifications for full technical details
• Retail pricing available — contact: 📧 support@londonlaboquip.com

Specifications
  • Category
    Microscopes
  • Type
    Inverted Microscope
  • Warranty
    1 Year
  • Brand
    London LaboQuip
  • Eyepiece
    High eye-point plan, WF10x/22
  • Inter-pupillary Distance
    52-75mm
  • Body Incline
    45°
  • Nose Piece
    Quintuple
  • Head Rotation
    Trinocular
  • Stage Size
    Attachable MechanicaStage size: X×Y: 210×241mm, Round slide size: Φ110mm(available for 96 holes plate, moving range X×Y：128×80mm, Culture Dishholder:54mm
  • Focusing System
    Course Coaxial Focusing, with 0.002 intervals
  • Illumination
    6V 30W Halogen Lamp House/ LED
  • Condenser
    Long working distance, Quickly detachable , N.A.0.3, Working distance: 72mm (with condenser),195mm(without condenser)
  • Filters
    Blue, and Green
  • Power Supply
    UK Power Cord
  • Dimension
    660mm×590mm×325mm, Gross Weight: 18 kgs, Net Weight: 13.5 kgs
  • Additional Accessories
    Filter Holder+ Multifunctional Specimen Holder( Clips can catch 93x136mm petri dishes )(54mm)
  • Optional Accessories
    C-Mount (0.5x(£50) or 1x(£30) ), Center Telescope (£40)
