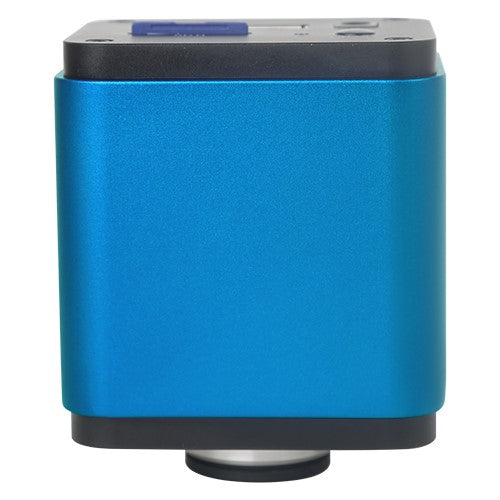

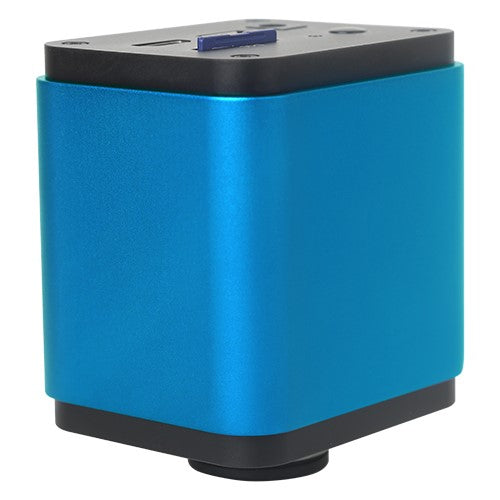

LaboQuip XCAM1080P, HDMI Digital Camera for Microscope CMOS, HDMI+ WiFi+ SD, Advanced& Professional with SONY Sensor

Sensor size: 1/1.9"(7.20x4.05)(SONY) Pixel size (μm): 3.75x3.75 M, Digital Camera for Microscope designed for a professional Microscopic imaging

14 days money-back guarantee! (T&C applies)

Choose digital camera for your Microscope wisely! Choose Professional!
The right combination of sensor and pixel size(mp) is the most important issue, as professionals say! Never the higher mp guarantee the better view/ photo!
Therefore, we believe our Digital Cameras for Microscope are reasonable! Try and if you didn't like return for a full refund.

XCAM 1080 Digital Camera for Microscope;
All in one ( HDMI+USB+SD card) Microscope camera with high sensitivity CMOS sensor

• Simultaneous HDMI & USB output
• Built-in mouse control
• Built-in image capture & video record to SD card
• Built-in camera control panel for mouse control
• Built-in toolbar including zoom , mirror, comparison, freeze, cross, browser functions
• Built-in image & video browsing, display & play
• Ultra-Fine colour engine with perfect colour reproduction capability(USB)
• With advanced video & image processing application ToupView
• Support standard UVC for Windows/Linux/Mac(USB)

• • CNC shell moulding design

XCAM1080PHD is a multiple interface (HDMI+ WiFi+ SD card, X here means multiple interfaces) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+ WiFi is used as the data transfer interface to HDMI display or computer.

For HDMI output, The XCam View will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.

For WiFi output, unplug the mouse and plug in the USB WiFi adapter, connect the computer WiFi to the camera, then the video stream can be transferred to the computer with the advanced software Toup View. With ToupView, you can control the camera, process the image as ToupTek's other USB series camera.

The XCAM1080PHD’s basic characteristic is as follows:

• All in 1( HDMI+ WiFi) Microscope camera with Sony high sensitivity CMOS sensor;
• For HDMI application, with built-in multiple-language XCam View software. The camera characteristic can be controlled by XCam View through the USB mouse. The other basic processing and choosing can also be realised by the XCam View;
• 1920 × 1080 (1080P) resolutions to match the current high-definition displayer on the market; Support plug and play application;
• For HDMI application,0M resolution image(1920*1080) can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved;
• With the USB WiFi adapter, the XCAM1080PHD can be used as a WiFi camera, the ToupView/ToupLite advanced image processing software is used to display the video and capture the image. support plug and play application;
• Ultra-Fine Colour Engine with perfect colour reproduction capability(WiFi);
• With advanced video & image processing application ToupView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, colour composite, and denoising(USB);
• XCAM1080PHD can meet various applications and can be widely used in industrial inspection, education, and research, materials analysis, precision measurement, medical analyses, etc.

The possible applications of XCAM1080PHD are as follows:

• Scientific research, education (teaching, demonstration, and academic exchanges);
• Digital laboratory, medical research;
• Industrial visual (PCB examination, IC quality control);
• Medical treatment (pathological observation);
• Food (microbial colony observation and counting);
• Aerospace;
